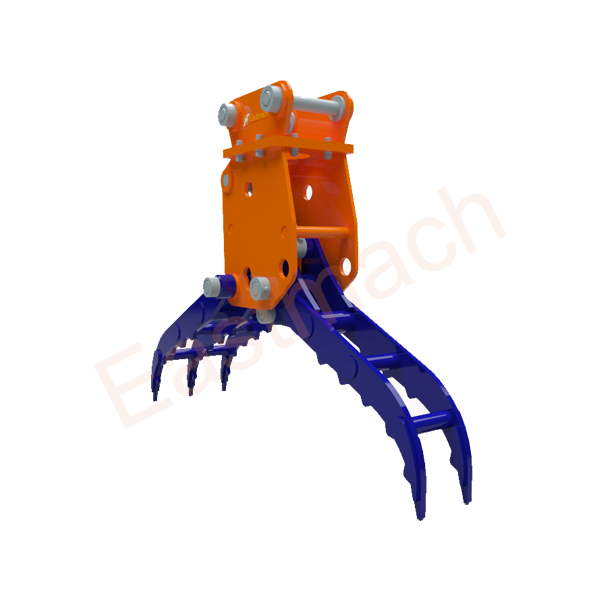

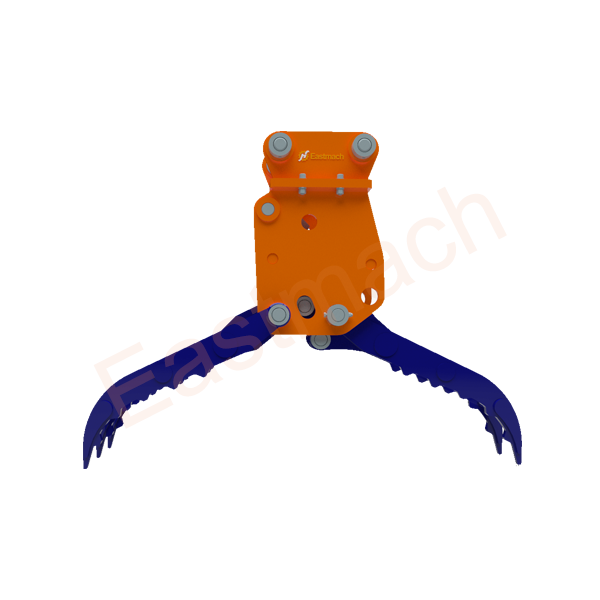

High-quality Hydraulic Grapple for excavator for sale

Hydraulic Grape is suitable for the disassembly, classification, and placement of wooden building structures, as well as the cleaning and loading and unloading of building and household waste and debris.



The product has the following characteristics:

1. Using high-quality steel, with high strength and wear resistance;

2. The pin shaft is made of alloy steel with an internal oil passage, which has high strength and good toughness;

3. Customized widened models according to needs, with the option to customize different widths and angles such as 4+3 and 5+4 for the lower grip;

4. The oil cylinder is equipped with a throttle valve, a pressure reducing valve, and an overflow valve, which is safer and more stable, and easy to operate with a low failure rate.

    index (1)3i7
    WhatsApp
    indexjhb
    WeChat
    Contact us

    Product Parameter

    Item Unit HD-01 HD-02 HD-04 HD-06 HD-08
    Oil pressure bar 80-110 110-140 120-160 150-170 160-180
    Work flow lpm 25-40 30-55 50-100 90-110 100-140
    Open gear mm 960 1200 1600 1800 2200
    Excavator weight ton 1.5-3 4-6 6-9 12-16 17-23
    Weight kg 65-150 120-150 150-180 400-550 650-800

    Product Description

    Hydraulic Grape is suitable for the disassembly, classification, and placement of wooden building structures, as well as the cleaning and loading and unloading of building and household waste and debris. Yantai Huida Intelligent Equipment Co., Ltd. is a professional research and development, production, and sales company for excavator accessories. The Hydraulic Grape produced by us benefits from the use of high-quality steel, which has high strength, wear resistance, and reduced weight, making it suitable for more excavator models. Customization of different widths and angles can be made according to customer needs, using built-in oil channels with high strength and good toughness. Putting customers at the center and providing attentive service is our business philosophy, and it is also our eternal and unchanging purpose on the road of development.

    Features

    1. Using high-quality steel, with high strength and wear resistance;
    2. The pin shaft is made of alloy steel with an internal oil passage, which has high strength and good toughness;
    3. Customized widened models according to needs, with the option to customize different widths and angles such as 4+3 and 5+4 for the lower grip;
    4. The oil cylinder is equipped with a throttle valve, a pressure reducing valve, and an overflow valve, which is safer and more stable, and easy to operate with a low failure rate.
    detail (1)5vj

    description2
