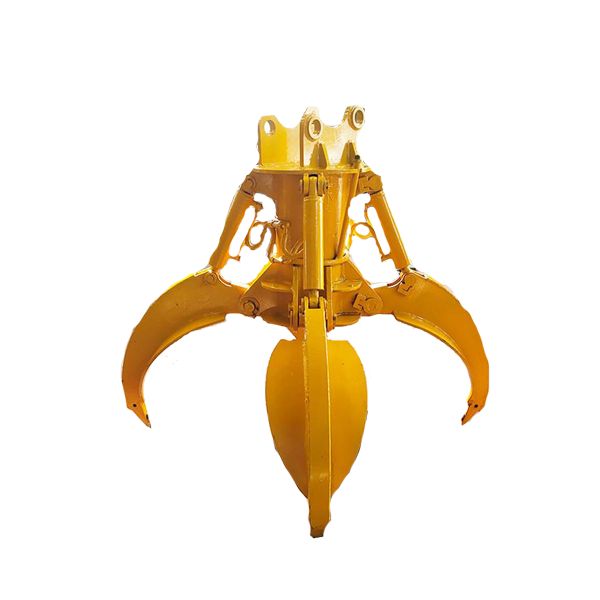

Orange Peel Grapple for excavator for sale
Product Parameter
Item | Unit | Model | |||
HD-04 | HD-06 | HD-08 | HD-10 | ||
Open width | mm | 1260 | 1580 | 1975 | 2275 |
Close width | mm | 970 | 1210 | 1510 | 1740 |
Height | mm | 890 | 1110 | 1390 | 1600 |
Height | mm | 1060 | 1325 | 1660 | 1910 |
Cylinder thrust | ton | 4 | 6.5 | 10.5 | 13 |
oil pressure | Mpa | 18-21 | 21-25 | 21-25 | 21-25 |
Excavator weight | ton | 5-9 | 5-9 | 17-23 | 24-30 |
Weigh | kg | 35-400 | 700-800 | 950-1100 | 1500-1700 |
Product Description
Orange Peel Grapple is suitable for car cranes, excavators, and for grabbing scrap steel, plastic waste, garbage, etc.
According to the tea of Orange Peel Grapple, it has four tea, five tea It is widely used for handling, loading and unloading materials, such as scratch metal, sugar, wood, stone, steel slab, grabbing garage, and other special operations The HuiDa Orange Peel Grapple is the ideal tool for handling car bodies, loose waste, rubber, level, or sand
Yantai Huida Intelligent Equipment Co., Ltd. specializes in the research and development, production, and sales of excavator accessories. All products have undergone quality control throughout the entire process from accessory procurement to product delivery, and have obtained ISO9001 quality management system certification and CE certification.

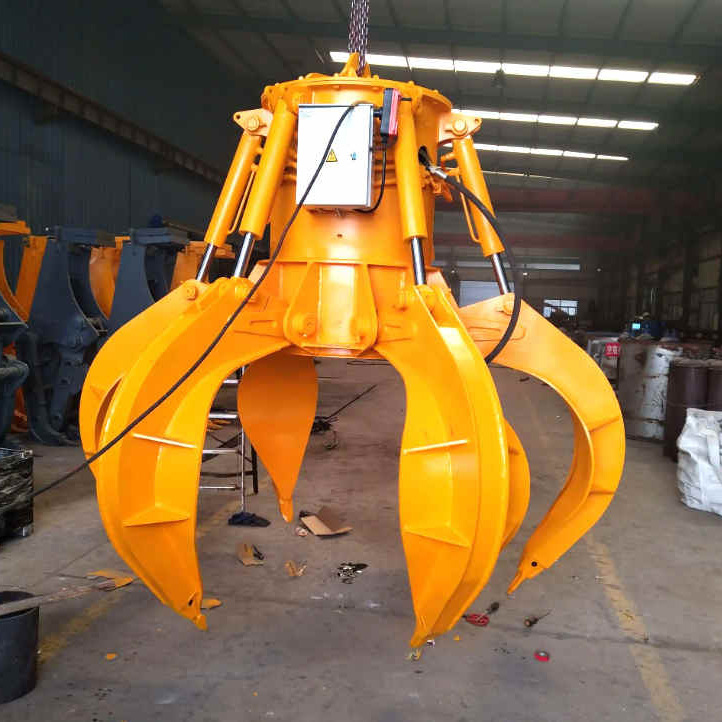

![detail (1)3ye](https://ecdn6.globalso.com/upload/p/693/image_other/2024-01/659662ab93df621283.jpg)

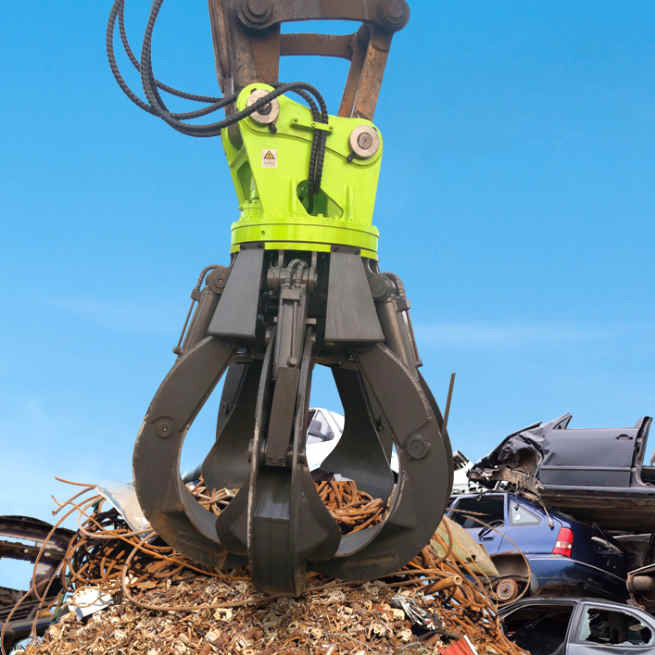

![detail (2)1sd](https://ecdn6.globalso.com/upload/p/693/image_other/2024-01/659662b1d2a8459385.jpg)

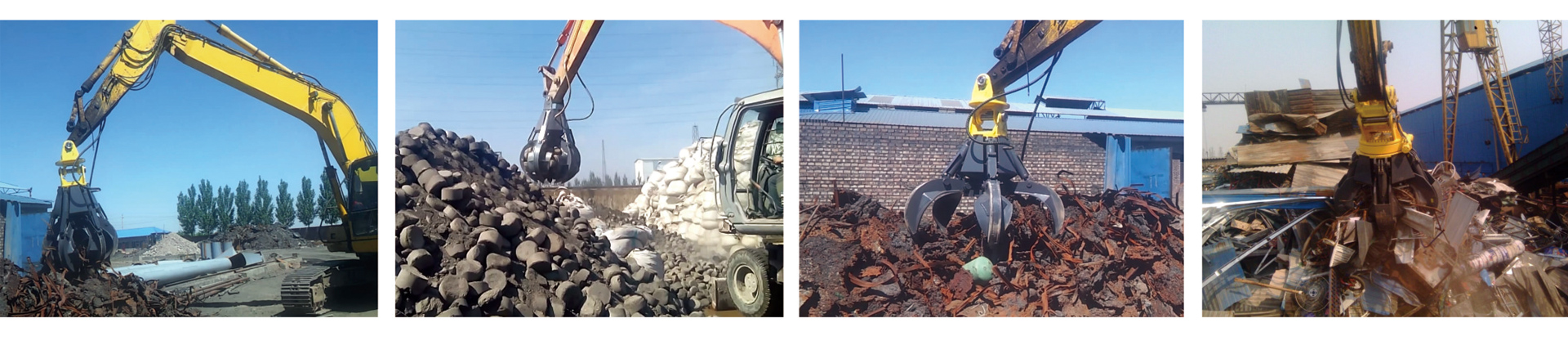

![detail (6)xul](https://ecdn6.globalso.com/upload/p/693/image_other/2024-01/659662cae1b0d58165.jpg)
Features
1. Using wear-resistant steel, with light weight and superior wear resistance;
2. Optimized design, with greater gripping force and wider gripping distance among products of the same level;
3. The oil cylinder adopts honing tube and high-quality oil seal, with short working cycle and long service life;
4. The high-pressure hose of the oil cylinder is built-in, and the oil circuit is completely closed, protecting the hose and extending its service life;
